FASTCAM MINI AX
Model AX50 / AX100 / AX200

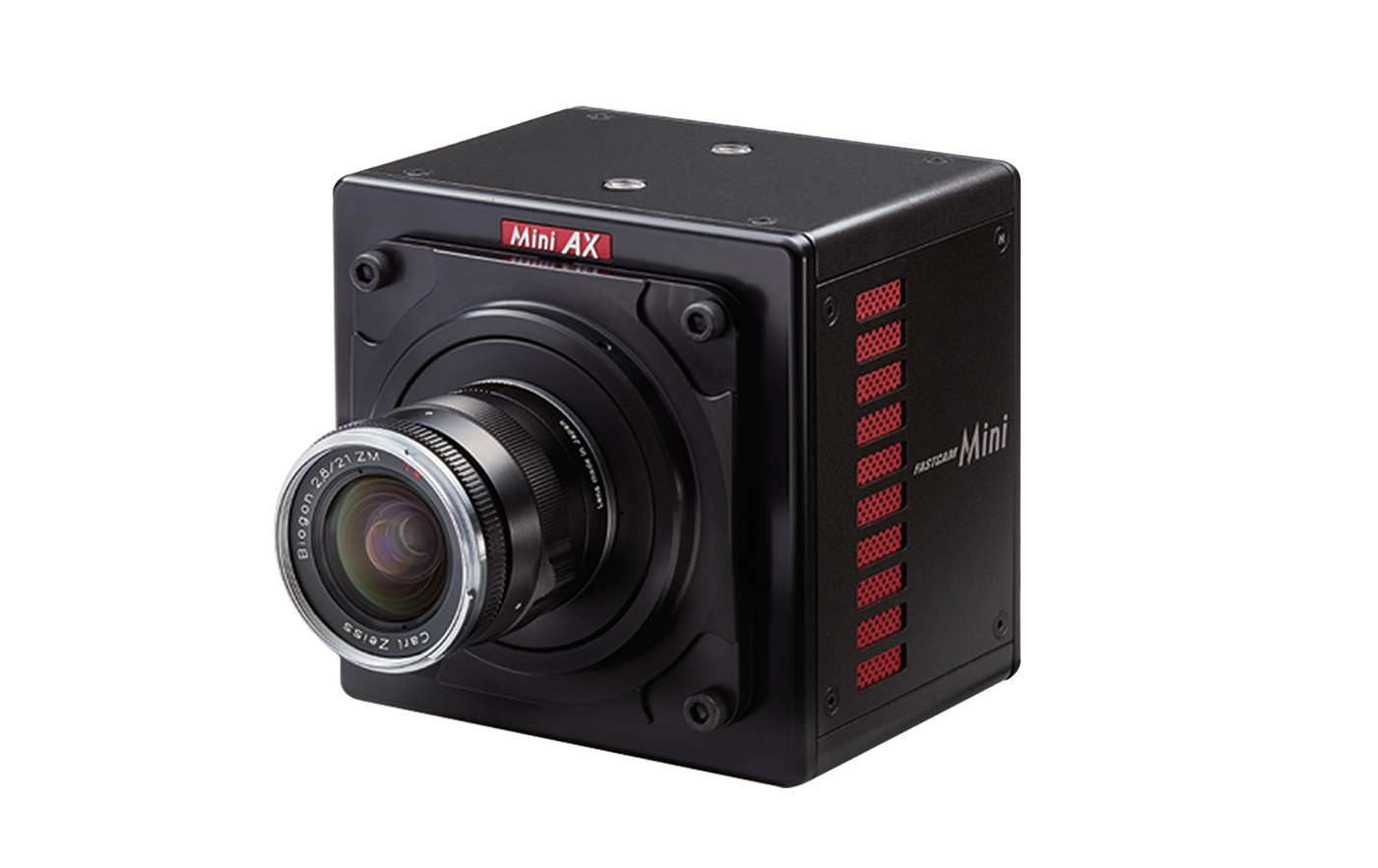

The FASTCAM Mini AX is Photron’s highest performance model within the FASTCAM Mini series of high-speed cameras. The Mini AX delivers exceptional light sensitivity, excellent image quality and flexible region of interest (ROI) features for customers who do not require the ultimate frame rate performance of the FASTCAM SA-Z, but would benefit from the same high-end camera image sensor features.
1-Megapixel CMOS Image Sensor
1024 x 1024 pixels at 2,000fps (Mini AX50)
1024 x 1024 pixels at 4,000fps (Mini AX100)
1024 x 1024 pixels at 6,000fps (Mini Ax200)
Class Leading Light Sensitivity
ISO 50,000 Monochrome
ISO 25,000 Color
1-Megapixel CMOS Image Sensor:
1024 x 1024 pixels at 2,000fps (Mini AX50)
1024 x 1024 pixels at 4,000fps (Mini AX100)
1024 x 1024 pixels at 6,400fps (Mini AX200)
Maximum Frame Rate:
170,000fps (Mini AX50 type 170K)
212,500fps (Mini AX100 type 200K)
540,000fps (Mini AX100 type 540K)
216,000fps (Mini AX200 type 200K)
540,000fps (Mini AX200 type 540K)
900,000fps (Mini AX200 type 900k)
Class Leading Light Sensitivity:
• ISO 50,000 monochrome
• ISO 25,000 color
Global Electronic Shutter:
1ms to 1μs independent of frame rate
(Mini AX200 model 900K only: 260ns shutter available subject to export control)
Dynamic Range (ADC):
12-bit monochrome, 36-bit color
Compact and Lightweight:
120mm (H) x 120mm (W) x 94mm (D)
4.72” (H) x 4.72” (W) x 3.70” (D)
Weight: 1.5Kg (3.30 lbs.)
Internal Recording Memory:
8GB, 16GB, or 32GB
Fast Gigabit Ethernet Interface:
Provides high-speed image download to standard notebook/PC
Flexible Frame Synchronization:
Frame rate may be synchronized to external unstable frequencies
High-G Rated:
Suitable for application in high-G environments; operation tested to 100G, 10ms, 6-axes
Fan Stop Function:
Remotely switch off cooling fans to eliminate vibration
