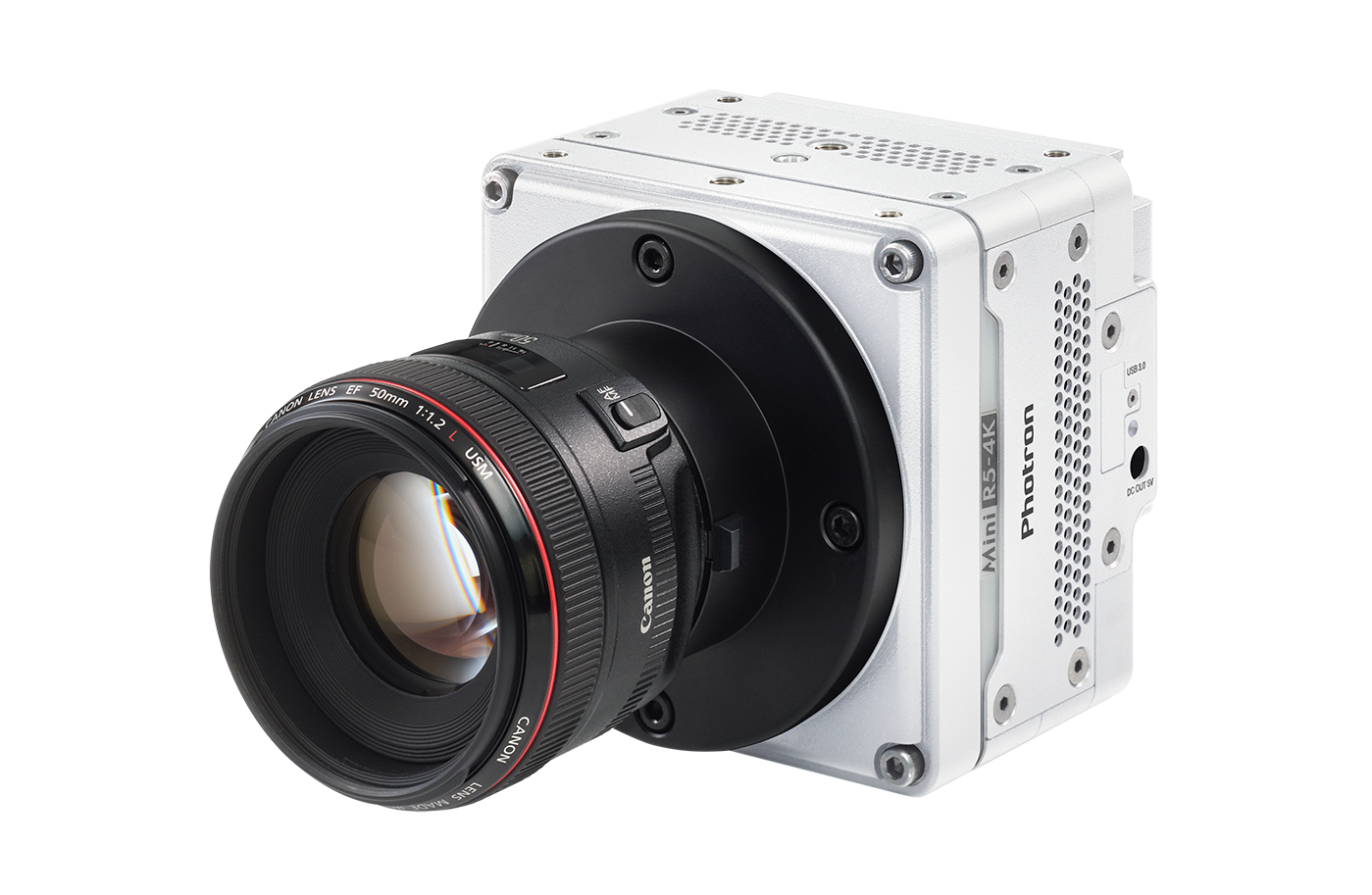

FASTCAM Mini R-Series
True 4K high-speed imaging in a compact, rugged camera body for applications requiring a wide field of view and exceptional spatial detail.
Compact 4K Imaging System
The FASTCAM Mini R3-4K and Mini R5-4K use a proprietary 9.4-megapixel CMOS sensor to capture large spatial areas while preserving the fine image detail needed for demanding research, testing, and analysis.
The Mini R3-4K records 4,096 × 2,304 images at 750 frames per second, while the Mini R5-4K reaches 1,250 frames per second at the same full 4K resolution. At Full HD, performance increases to 3,000 fps and 5,280 fps respectively.
Both models combine 12-bit recording, a 2-microsecond global electronic shutter, class-leading light sensitivity, remote lens control options, 10-Gigabit Ethernet, and a sealed high-G-rated body.
4K performance in the compact Mini platform
Capture large scenes and small details at frame rates suited to automotive, aerospace, fluid dynamics, material testing, and scientific research.
Two 4K models for different speed requirements
Both models use the same compact platform, 9.4-megapixel sensor, lens options, sensitivity, 12-bit recording, networking, and software workflow.
FASTCAM Mini R3-4K
Designed for applications that require true 4K imaging at high frame rates with excellent sensitivity and compact installation.
- 750 fps at 4,096 × 2,304
- 800 fps at 3,840 × 2,160
- 3,000 fps at 1,920 × 1,080
- 150,000 fps maximum frame rate
FASTCAM Mini R5-4K
Optimized for users who need the highest available full-resolution, UHD, Full HD, and reduced-resolution frame rates in the Mini R platform.
- 1,250 fps at 4,096 × 2,304
- 1,440 fps at 3,840 × 2,160
- 5,280 fps at 1,920 × 1,080
- 200,000 fps maximum frame rate
Designed for flexible optics, reliable capture, and fast workflow
The Mini R-Series combines detailed imaging with practical tools for calibration, lens control, triggering, synchronization, downloading, and integration.
9.4-Megapixel CMOS Sensor
A proprietary 4,096 × 2,304 image sensor delivers high spatial resolution with 6.5-micron pixels and a large imaging area.
Class-Leading Sensitivity
ISO 4,000 monochrome and ISO 800 color sensitivity help preserve image quality at short exposure times.
Advanced Lens Support
Standard Nikon G-type support plus optional C-mount, Canon EF, Canon RF, and M42 adapters provide broad optical flexibility.
Mechanical Calibration Shutter
A ruggedized internal shutter allows sensor black-balance calibration to be completed remotely through camera-control software.
Memory Segmentation
Record into one memory partition while downloading from another to improve efficiency during repetitive testing.
10-Gigabit Ethernet
High-speed Ethernet provides reliable camera control and fast image download to a standard computer.
Fan Stop Function
Cooling fans can be remotely switched off during recording to reduce vibration in high-magnification applications.
Sealed Camera Body
The enclosed body helps protect sensitive electronics from dust and corrosive particles in demanding environments.
High-G Rated
The compact camera body is operationally tested to 100G for automotive, aerospace, defense, and impact applications.
Built for repeatable testing and software integration
PFV software is included for camera control, image replay, saving, enhancement, calibration, and basic motion analysis.
A Photron Device Control SDK and libraries for MATLAB and LabVIEW support integration into user-developed acquisition, analysis, and automation systems.
Applications
The Mini R-Series is suited to applications where a large field of view, compact camera body, high spatial resolution, and high-speed capture are all required.
Automotive Safety Testing
Capture car-to-car, pedestrian, barrier, roll-over, restraint, and curtain-airbag events across a wide test area.
Aerospace and Defense
Observe propulsion, impact, structural response, separation events, and rapidly changing test articles in high spatial detail.
Fluid Dynamics and PIV
Record sprays, flows, droplets, particles, combustion, and large measurement fields for PIV and flow visualization.
Material Testing and DIC
Capture deformation, fracture, strain, drop tests, crack propagation, and structural behavior with detailed 4K imagery.
Microfluidics
Observe small-scale flows and transient behavior while maintaining a wide field of view and high pixel count.
Scientific Research
Capture transient phenomena using 12-bit data, precise synchronization, flexible triggering, and high-resolution image sequences.
FASTCAM Mini R-Series specifications
Key imaging, performance, interface, mechanical, and environmental specifications for the Mini R3-4K and Mini R5-4K.
| Specification | FASTCAM Mini R3-4K | FASTCAM Mini R5-4K |
|---|---|---|
| Maximum resolution | 4,096 × 2,304 pixels | |
| Full 4K performance | 750 fps | 1,250 fps |
| UHD performance | 800 fps at 3,840 × 2,160 | 1,440 fps at 3,840 × 2,160 |
| Full HD performance | 3,000 fps at 1,920 × 1,080 | 5,280 fps at 1,920 × 1,080 |
| Maximum frame rate | 150,000 fps at 2,048 × 8 | 200,000 fps at 2,048 × 8 |
| Light sensitivity | ISO 4,000 monochrome / ISO 800 color | |
| Minimum exposure | 2 µs, independent of frame rate | |
| Dynamic range | 12-bit monochrome / 36-bit color | |
| Pixel size | 6.5 × 6.5 µm | |
| Sensor size | 26.62 × 14.98 mm; 30.55 mm diagonal | |
| Recording memory | 16 GB, 32 GB, or 64 GB | |
| Memory partitions | Up to 128 selectable segments | |
| Lens mount | Nikon F/G-type standard; optional C-mount, Canon EF, Canon RF, and M42 | |
| Camera control | High-speed 1/10-Gigabit Ethernet | |
| Trigger modes | Manual, random reset, and random manual | |
| Trigger delay | 100 ns programmable resolution | |
| Time code | IRIG-B input | |
| External synchronization | ± TTL 5 Vp-p variable-frequency synchronization | |
| Dimensions | 120 × 120 × 94.4 mm, excluding protrusions | |
| Weight | 2.1 kg | |
| Operational shock | 100G, 11 ms, six axes, 1,000 times per axis | |
| Operating temperature | −10 to 40°C | |
| Cooling | Internal fan cooling with fan-off mode | |
| Power | 100–240 VAC adapter or 22–32 VDC input | |
