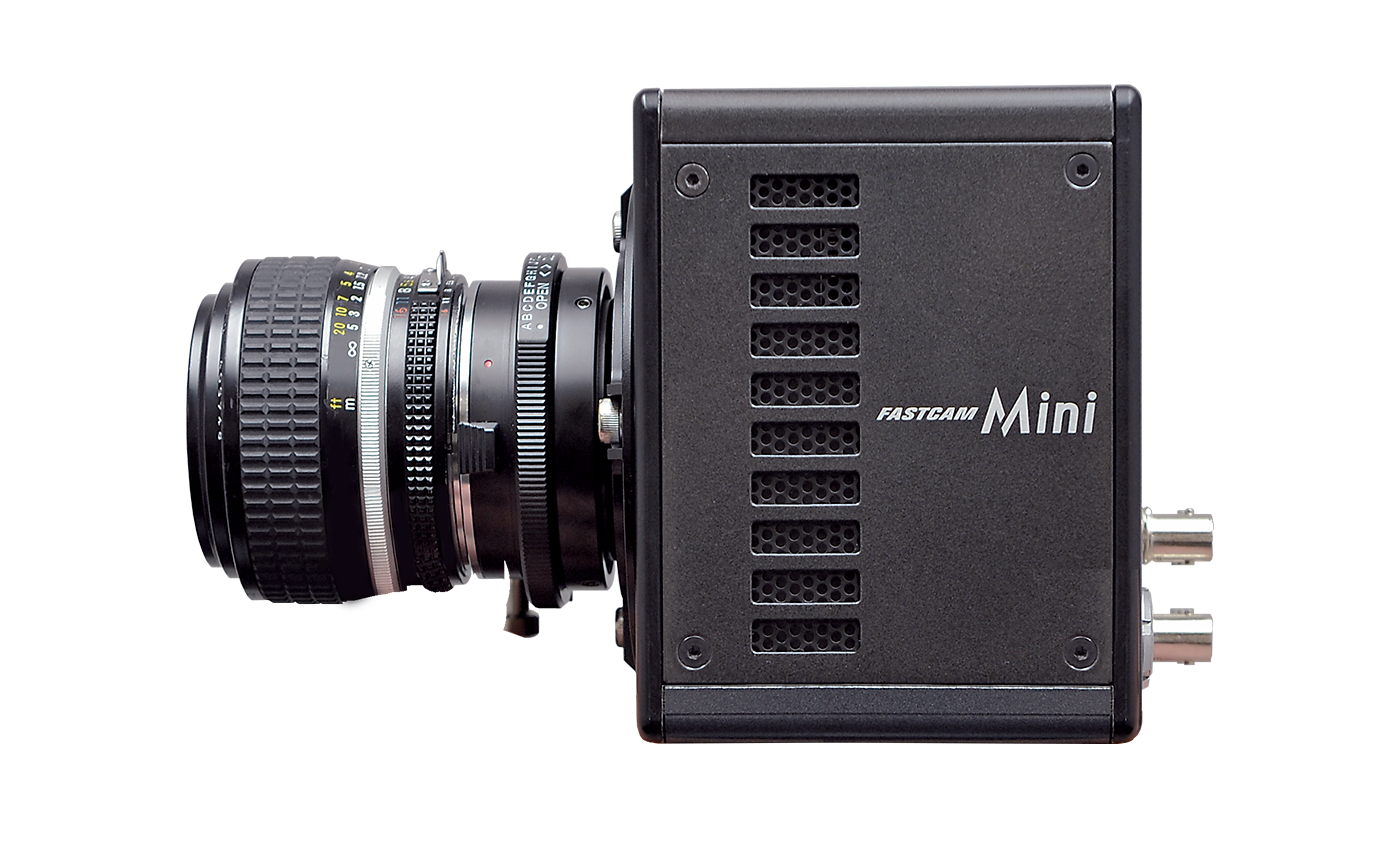

FASTCAM Mini UX
Outstanding high-speed imaging performance, compact construction, and flexible operation for scientific, industrial, and automotive testing.
Reliable high-speed imaging at an attractive price-performance ratio.
The FASTCAM Mini UX is designed for a wide range of general scientific and industrial applications requiring high image quality, compact size, and rugged construction.
Both Mini UX models use a proprietary 1.3-megapixel CMOS sensor with 10-micron pixels and microlens technology to improve effective fill factor and light sensitivity.
The compact 120 × 120 × 93 mm body weighs only 1.5 kg, making the Mini UX well suited to on-board automotive testing, off-board safety testing, laboratory research, and other applications where installation space is limited.
Flexible performance for scientific and industrial imaging
Choose the Mini UX model and recording mode that best match your required resolution and frame rate.
Two Mini UX models
Both models share the same compact platform, image quality, rugged construction, lens compatibility, and software tools.
Mini UX50
A compact 1.3-megapixel high-speed camera for a broad range of scientific, engineering, and industrial imaging applications.
Mini UX100
Higher full-resolution and reduced-resolution frame rates for applications requiring greater temporal detail.
Practical features for demanding test environments
The Mini UX combines a compact mechanical design with the control, synchronization, and software features required for reliable high-speed recording.
1.3-Megapixel CMOS Sensor
Capture detailed 1,280 × 1,024 images using Photron’s proprietary CMOS sensor technology.
10-Micron Pixels
Microlenses increase effective fill factor to support strong light sensitivity from a compact image sensor.
Gigabit Ethernet
Reliable camera communication and fast image download to a standard notebook or desktop computer.
Nikon G-Type Lens Mount
Use readily available Nikon G-type lenses with built-in aperture control through the camera mount.
Optional C-Mount
Support compact 1-inch C-mount lenses for lightweight, rugged, and high-aperture optical configurations.
Flexible Synchronization
Synchronize the camera frame rate to external and unstable frequencies for advanced measurement setups.
Dedicated I/O
Trigger, sync, ready, event, IRIG, record, and exposure signals support multi-camera and DAQ integration.
Fan-Off Mode
Remotely stop the internal cooling fans to reduce vibration during high-magnification recording.
High-G Construction
Operationally tested to 100G for automotive safety testing, impact environments, and severe acceleration.
Efficient recording and software operation
Photron FASTCAM Viewer software is included for camera control, image replay, data saving, image enhancement, calibration, and basic motion analysis.
Up to 64 memory segments allow multiple events to be stored before downloading, while automatic download and re-arm functions support repetitive testing.
Anwendungen
The Mini UX is designed for general high-speed imaging across automotive, scientific, industrial, and engineering environments.
Sicherheitsprüfungen für Kraftfahrzeuge
Capture on-board and off-board crash, restraint, airbag, component, and structural events.
Materials Testing and DIC
Observe deformation, strain, fracture, crack propagation, impact, and failure behavior.
Fluiddynamik
Record sprays, droplets, bubbles, jets, particles, and rapidly changing flow behavior.
Biomechanik
Analyze human motion, sports performance, impact response, and biological movement.
Welding and Plasma Research
Study arc behavior, molten material, plasma events, sparks, and high-temperature processes.
Wissenschaftliche Forschung
Capture transient events using precise triggering, synchronization, high-speed recording, and 12-bit image data.
FASTCAM Mini UX specifications
Compare Mini UX50 and Mini UX100 performance and review key imaging, memory, interface, and mechanical specifications.
| Specification | Mini UX50 | Mini UX100 |
|---|---|---|
| Maximum resolution | 1,280 × 1,024 | 1,280 × 1,024 |
| Full-resolution frame rate | 2,000 fps | 4,000 fps |
| Additional performance | 2,500 fps at 1,280 × 800 | 5,000 fps at 1,280 × 1,000; 6,250 fps at 1,280 × 800 |
| Maximum frame rate | 160,000 fps at 1,280 × 8 | 200,000 fps at 640 × 8 or 800,000 fps at 640 × 8 |
| Sensor type | Proprietary advanced CMOS image sensor | |
| Pixel size | 10 × 10 µm | |
| Sensor size | 12.80 × 10.24 mm; 16.39 mm diagonal | |
| Light sensitivity | ISO 10,000 monochrome / ISO 5,000 color | |
| Equivalent monochrome sensitivity | ISO 25,000 including near-infrared response | |
| Shutter | Global electronic shutter; 3.9 µs to approximately 1.01 µs at maximum frame rates | |
| Dynamic range | 12-bit monochrome / 36-bit color | |
| Internal memory | 8 GB, 16 GB, or 32 GB | |
| Memory partitions | Up to 64 selectable segments | |
| Region of interest | Selectable in steps of 128 pixels horizontally and 8 pixels vertically; minimum 640 × 8 | |
| Lens mount | Nikon F-mount with G-type compatibility; optional C-mount | |
| Camera interface | High-speed Gigabit Ethernet | |
| Trigger modes | Start, end, center, manual, and random | |
| Time code | IRIG-B input | |
| Dimensions | 120 × 120 × 93 mm | |
| Weight | 1.5 kg | |
| Operational shock | 100G, 10 ms, six axes | |
| Operating temperature | 0 to 40°C | |
| Cooling | Internal fan cooling with fan-off mode | |
Downloads and support
Access the Mini UX datasheet, PFV software, manuals, analysis tools, technical support, and contact resources.
Mini UX Datasheet
Review model performance, sensor information, memory, triggering, interfaces, software, and environmental specifications.
Download Datasheet →PFV Software
Learn about Photron FASTCAM Viewer software for control, replay, saving, enhancement, calibration, and measurement.
View PFV Software →Product Manuals
Access Photron hardware and software manuals for installation, triggering, synchronization, and operation.
View Product Manuals →PFA2 Analysis Software
Explore optional 2D tracking and motion-analysis tools for displacement, velocity, acceleration, and movement.
View PFA2 Software →Technical Support
Get help with setup, lenses, triggering, synchronization, software, networking, and service.
Visit Technical Support →Kontakt Photron
Discuss frame rate, resolution, sensitivity, memory, lenses, triggering, and application requirements.
Contact Photron →Compact performance for demanding high-speed imaging
Talk with Photron about the right Mini UX model, frame rate, memory, lens, trigger, and synchronization configuration.
